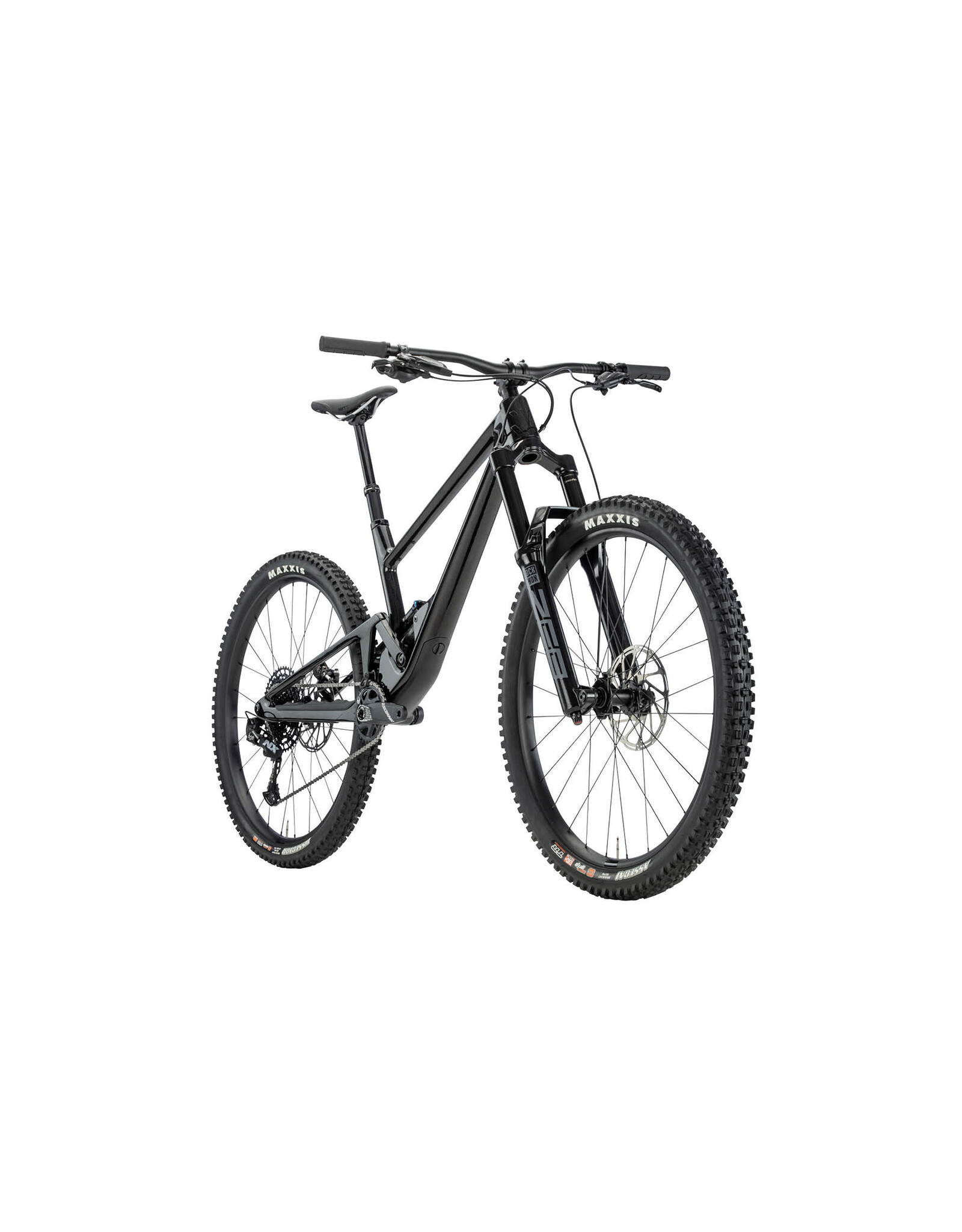

SCOR Scor 4060 LT NX
| Availability: | In stock |
SCOR
4060 LT NX
MIDNIGHT DISCO
::160mm Rear / 170mm Front Travel
::29” Wheels
::RockShox ZEB Select / RockShox Super Deluxe Select+ Suspension
::SRAM NX Eagle Drivetrain
::RockShox ZEB Select / RockShox Super Deluxe Select+ Suspension
::SRAM NX Eagle Drivetrain
::SRAM Code R Brakes
Regular price$4,900.00 Sale price$3,899.00!
------
An enduro bike that squeezes the most out of every trail, the 4060 LT NX is pure concentrated fun. By using a gnar-loving full-carbon frame and pairing it with quality suspension components there’s no holding back on how hard you can send it. The bulletproof build kit means you’re good to go from the get-go and with everything you need and nothing you don’t, you can focus on having fun on the trail ahead.
------
Frameset
Frame:
SCOR 4060 Full Carbon Frame | Lower-Link Driven Instant Center Linkage | 140 / 160mm Rear Wheel Travel | Fully Guided Internal Cable Routing | Stash Box | Boost 148 | SRAM UDH | Lower ISCG 05 Mount / Chainguide
Fork:
RockShox ZEB Select RC2 | 170mm Travel | 44mm Rake
Suspension
Front Suspension:
RockShox ZEB Select RC2 | 170mm Travel | 44mm Rake
Rear Suspension:
RockShox Super Deluxe Select+ RT | 205 x 65mm Trunnion
Cockpit
Stem:
SCOR Alloy Stem | 31.8mm Bar Bore | 35 mm Length | 0° Angle
Handlebar:
SCOR Alloy Bar | 31.8mm Clamp | 800mm Wide | 20mm Rise | 5° Upsweep | 9° Backsweep
Grips:
VP VPG-125A
Seat
Seatpost:
X-Fusion Manic | S 125mm | M 150mm | L / XL 170mm Travel
Saddle:
WTB Silverado Steel SL | Medium
Drivetrain
Crankset:
SRAM Descendant 6K Eagle | 170 mm Length
Chainrings:
SRAM NX Eaglerings
Cassette:
SRAM NX PG-1230 Eagle
Cassette Size:
11-50T
Chain:
SRAM NX Eagle
Rear Derailleur:
SRAM NX Eagle
Shifters:
SRAM NX Eagle Trigger
Gears:
1 x 12
Bottom Bracket:
DUB Interface
Brakes
Brake Levers / Calipers:
SRAM Code R
Rotors:
SRAM Centerline | 6-Bolt
Rotor Size (F/R):
200mm
Wheels
Rims:
XDH-130 EN | 28 Spokes | 6061-T6 Alloy | Welded Joint | 30mm Internal Width | Tubeless ready
Hubs (F/R):
XDH-130 EN | 28 Spokes | Sealed Cartridge Bearings
Tires:
Maxxis Assegai 29 x 2.5" 3C MaxxGrip Exo+ TR (F) | Maxxis Dissector 29 x 2.4" 3C MaxxTerra DD TR (R)
Tubeless Information:
Tubeless Ready Rims
------
| Size | S | M | L | XL |
|---|---|---|---|---|
| Rider Height | 155 - 170 | 165 - 180 | 175 - 190 | 185 - 200 |
| BB Drop (SLACK) | 21 | 21 | 21 | 21 |
| BB Drop (STEEP) | 18 | 18 | 18 | 18 |
| BB Height (SLACK) | 348 | 348 | 348 | 348 |
| BB Height (STEEP) | 351 | 351 | 351 | 351 |
| Chainstay | 432 | 432 | 432 | 432 |
| Fork Length | 580 | 580 | 580 | 580 |
| Fork Rake | 44 | 44 | 44 | 44 |
| Front Center (SLACK) | 773 | 798 | 823 | 853 |
| Front Center (STEEP) | 761 | 785 | 810 | 840 |
| Head Tube | 87 | 99 | 115 | 127 |
| HT Angle (SLACK) | 63.8 | 63.8 | 63.8 | 63.8 |
| HT Angle (STEEP) | 65 | 65 | 65 | 65 |
| Reach (SLACK) | 435 | 459 | 485 | 515 |
| Reach (STEEP) | 431 | 456 | 481 | 511 |
| Seat Tube | 400 | 425 | 440 | 470 |
| ST Angle @750mm Saddle Height (SLACK) | 76.5 | 76.5 | 76.5 | 76.5 |
| ST Angle @750mm Saddle Height (STEEP) | 76 | 76 | 76 | 76 |
| ST Angle Actual (SLACK) | 69 | 69 | 69 | 69 |
| ST Angle Actual (STEEP) | 68.5 | 68.5 | 68.5 | 68.5 |
| ST Angle Effective (SLACK) | 77.9 | 77.9 | 77.9 | 77.9 |
| ST Angle Effective (STEEP) | 77.4 | 77.4 | 77.4 | 77.4 |
| Stack (SLACK) | 601 | 612 | 626 | 637 |
| Stack (STEEP) | 603 | 615 | 629 | 640 |
| Stand Over Height (80 in Front of BB) | 759 | 771 | 775 | 791 |
| Stand Over Height (Lowest Point) | 722 | 731 | 739 | 749 |
| Top Tube (SLACK) | 562 | 590 | 621 | 655 |
| Top Tube (STEEP) | 564 | 592 | 623 | 657 |
| Wheelbase (SLACK) | 1206 | 1230 | 1255 | 1285 |
| Wheelbase (STEEP) | 1193 | 1217 | 1242 | 1272 |
